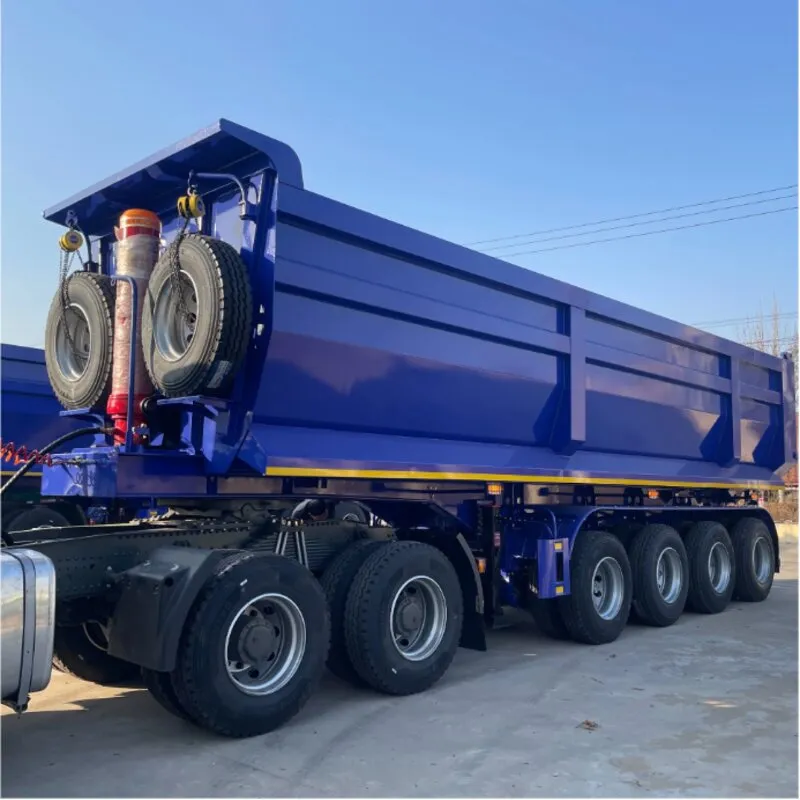

Khoom Description:
Raws li peb cov khoom zoo tshaj, U-Type Tsheb Tipper Cargo Trailer tau txais kev qhuas los ntawm kev ua lag luam. Zoo heev durability thiab load-bearing muaj peev xwm yog lub hauv paus ntawm peb cov khoom.
Txais tos rau kev sab laj, peb yuav muab koj cov nqi zoo dua thiab cov khoom zoo dua.
Khoom Parameter:
|
Dimension |
93 (0 * 2500 * 3600mm) |
|
Thauj khoom (kg) |
35 cbm / 60 tons |
|
Qhov hnyav (kg) |
8 5000kg |
|
Thickness |
Pem teb 6 hli, sab 4 hli stainless hlau |
|
Main beam |
Mild Alloy (16Mn) los ntawm Tsis Siv Neeg submerged arc vuam.Qhov siab ntawm lub nqaj yog 500 hli, phaj sab sauv yog 14 hli, nqes phaj yog 16 hli, phaj nruab nrab yog 8 hli. |
|
Lub thawv loj |
8700 * 2400 * 1700mm 6mm |
|
Qag |
3 axles, 13Ton Fuwa hom 16ton nres nres |
|
tsaws iav |
Fuwa 28T lifting muaj peev xwm nrog ob ceev |
|
King Pin |
2.00 inch bolt-in king pin Brand JosT |
|
Kev ncua |
Mechanical suspension reinforced hom |
|
Nplooj Caij nplooj ntoos hlav |
90mm (w) * 13mm (T) * 10 Txheej |
|
Pneumatic Braking System |
Dual kab pneumatic nres system, T30 cua chamber, 40L cua tso tsheb hlau luam Emergency relay valve |
|
Rim |
9. 0-20*12 pCS |
|
Lub log |
12R22.5 * 12 hli |
|
Khoom siv |
Ib tug standard toolbox |
|
Spare log tsheb |
ib |
|
Hluav taws xob qhov system |
24 volt hluav taws xob system.7 pin hluav taws xob connector. Chaw nres tsheb nres, thim rov qab phaj thiab qhov taw qhia teeb |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosiveprime, 2 lub tsho tiv no ntawm cov xim kawg |
|
Cov ntsiab lus shipping |
Los ntawm Bulk CargO / RORO LOSSIS 45ft HQ thawv |
Lub Hoobkas Saib:
Cov duab ntxaws:
FAQ:
1: Koj txhawb txoj kev them nyiaj dab tsi?
- Peb txhawb T / T thiab LC thiab lwm yam uas koj xav tau.
2: Koj qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
- Ib unit.
3. Yuav ua li cas txog lub sijhawm khoom xa tuaj?
- Feem ntau nws yuav siv sijhawm 15 hnub tom qab tau txais koj qhov tso nyiaj. Hnub tshwj xeeb yuav nyob ntawm koj qhov kev txiav txim thiab cov khoom. Peb yuav tiv tauj koj yog tias peb lees paub hnub xa khoom. Thiab peb yuav taug qab cov khoom txhua lub sijhawm kom txog thaum cov khoom mus txog qhov chaw.
4.Kuv tuaj yeem paub meej tias koj cov khoom puas yuav ua tau raws li kuv xav tau?
-Koj tuaj yeem qhia peb koj cov kev xav tau xws li qhov loj me, cov khoom siv, ntim, qhov siab thiab lwm yam ntaub ntawv, peb cov kws tshaj lij kev muag khoom yuav muab kev daws teeb meem, thiab peb muab cov kev pabcuam OEM.
Ntim & Shipping:
Cim npe nrov: u-type rear tipper cargo trailer, Tuam Tshoj u-type rear tipper cargo trailer manufacturers, lwm tus neeg
