Nqe lus piav qhia:

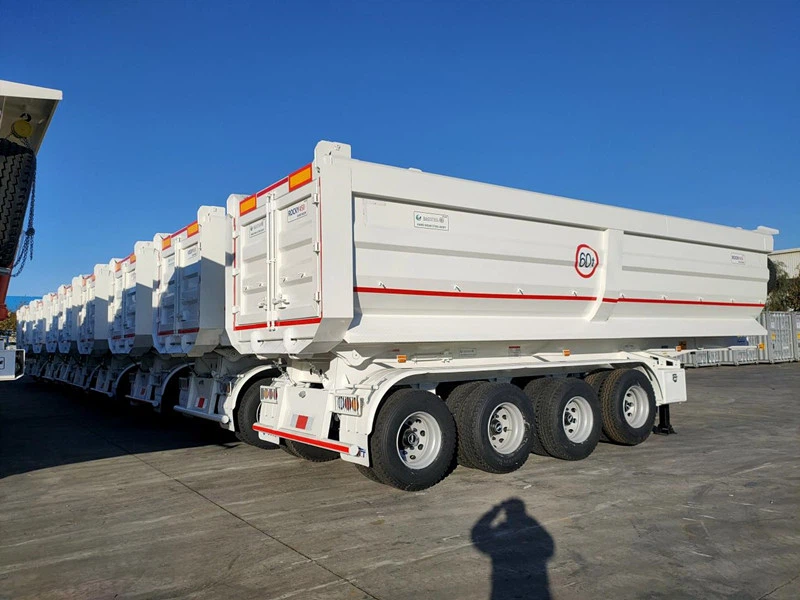

4 axles rear dump trailer tau dhau los ua tus qauv muag zoo tshaj plaws hauv kev xa tawm vim tias nws muaj peev xwm thauj khoom muaj peev xwm thiab muaj txiaj ntsig zoo. Tshwj xeeb tshaj yog peb cov khoom, nrog guaranteed zoo thiab tus nqi qis.
Feature:
1. Lub zog thiab durability: Cov ncej thiab cov kab ntev ntev yog welded nrog cov ntawv zoo manganese, uas muaj zog heev thiab kav ntev.
2. Kev ua haujlwm zoo heev: Cov khoom tseem ceeb yog ua tiav nrog cov khoom siv siab heev. Cov kab ntev ntev yog tsim los ntawm kev siv tsis siv neeg submerged arc vuam kom ntseeg tau qhov vuam zoo thiab lub zog; thaum lub log axles thiab steel nplooj springs raug sib sau ua ke los ntawm lub tshuab sib dhos, txhim kho kev ruaj ntseg thiab kev cia siab ntawm tag nrho lub tsheb.
3. Siv dav: haum rau kev thauj mus los ntawm ntau yam thiab cov khoom tawg.
Specification:
|
DIMENSION |
|
|
Tare luj |
12 000 kgs |
|
Them nyiaj |
80 000 Kg |
|
Log Base |
4050mm +1360 hli +1360 hli +1360 hli |
|
Zuag qhia tag nrho Dimension |
10700mm * 2550mm * 3650mm (L * W * H) |
|
RUNNING GEAR |
|
|
Kev ncua |
Neeg kho tshuab |
|
Qag |
Yonglitai |
|
Lub log |
315/80R22.5 |
|
Nres |
Dual kab pneumatic nres system, WABCO Emergency Relay Valve; T30/30 cua chamber; nres nres |
|
LUB NPE |
|
|
Main Beam |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. Sab saum toj Flange 16mm, dav 140mm; Nruab nrab Flange 10mm; Hauv qab Flange 18mm, dav 140mm. |
|
King Pin |
Welded Kingpin, Jost 90 # (3.5 nti) |
|
tsaws iav |
ZOS 28T |
|
CARGO lub cev |
|
|
Sab hauv Dimension |
9500mm * 2300mm * 1600mm (L * W * H) |
|
Hlau ntawv |
Pem teb thickness 6 hli, sab phab ntsa thickness 5 hli |
|
Khoom siv |
Nm450 |
|
Hydraulic Jack |
Tag nrho cov txheej txheem ntawm HYVA hydraulic system, pem hauv ntej teeb telescopic jack |
|
Tailgate |
Ib-thooj tailgate nrog rau sab sauv articulation, kev ruaj ntseg xauv system |
|
ELECTRICAL & PAIN |
|
|
Teeb & Reflectors |
Tsheb teeb, rear reflector, tig taw qhia lub teeb, sab reflector, pos huab teeb, tooj phaj teeb |
|
Kev xaim |
24v, 6 yov |
|
Cua/Elec. Txuas |
ISO standard cua connector, 24V 7 tus pin plug socket |
|
Kev pleev xim |
1 lub tsho tiv no ntawm anticorrosive prime, ob lub tsho tiv no ntawm cov xim kawg |
Kev tsim cov ntsiab lus:
Factory Saib:
Peb qhov kev pabcuam:
Vim li cas thiaj xaiv peb?
1. Cov khoom siv ntau lawm thiab cov txheej txheem ntau lawm.
2. Cov khoom zoo.
3. Kev Tswjhwm nruj nruj
4. Tus nqi qis tshaj plaws uas koj tuaj yeem pom nrog qhov zoo ib yam
5. Kev pabcuam zoo tom qab muag
FAQ:
Packing & Shipping:
Cim npe nrov: Tuam Tshoj 4 axles rear dump trailer manufacturers, lwm tus neeg
