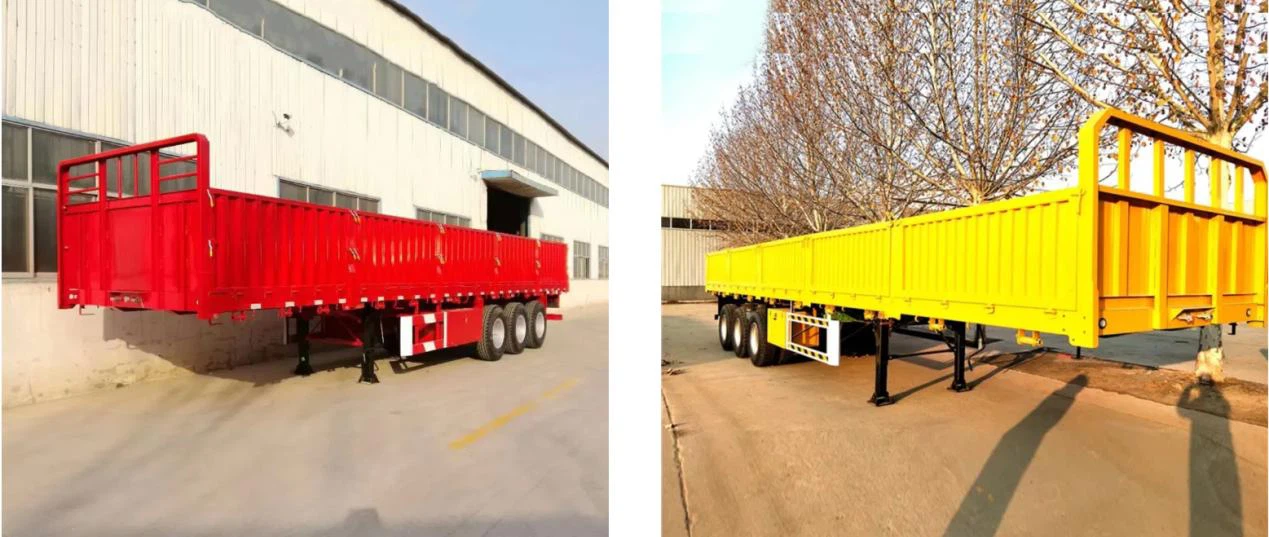

Nqe lus piav qhia:
Sidewall semi-trailer yog ib qho semi-trailer nrog ib sab-vaj huam sib luag rau kev thauj khoom thauj. Kev xaiv sab style, tus naj npawb ntawm qhov qhib ntawm txhua sab tuaj yeem yog 3 khub kiv cua, 4 kiv cua, 5 kiv cua, lossis 6 kiv cua; cov kab tuaj yeem muab tso rau hauv lossis tawm; lub tsheb sab panels tuaj yeem xaiv hauv ntsug corrugated, kab rov tav corrugated, lossis square. Flat raj, square raj, cross paj style, sab, pem hauv ntej thiab nram qab hom tuaj yeem ua ke ntawm qhov xav tau.
Tag nrho lub tsheb lub cev yog ua los ntawm cov hlau zoo, kev siv tshuab siab heev, thiab kev tsim khoom nruj heev. Lub tsheb muaj cov qauv tsim nyog, txhim khu kev qha, kev ua haujlwm yooj yim, thiab zoo nkauj tsos. Cov thav duab yog tag nrho ntawm cov qauv ntoo khaub lig, thiab cov kab ntev ntev yog ncaj los yog gooseneck. Lub ncua kev kawm ntawv yog ua los ntawm series nplooj springs thiab ncua kev kawm ntawv kev txhawb nqa, uas muaj zog rigidity thiab lub zog thiab yog siv los txhawb loads thiab txo cov kev cuam tshuam.
Nta:
Ntau yam kev siv thiab kev hloov kho.
Cov qauv tsim nyog, txhim khu kev qha, kev ua haujlwm yooj yim thiab zoo nkauj tsos.
Lub thav duab ntawm lub warehouse-hom semi-trailer yog ib tug nqaj-los ntawm cov qauv, thiab cov kab teeb yog ncaj los yog gooseneck.
Cov qauv tsim thiab kev siv tes ua haujlwm ntawm cov tsev thiab cov qauv tsheb ntawm lub tsev khaws khoom thauj semi-trailers yog txhua yam tsim nyog raws li tus neeg siv hom kev thauj mus los. Yuav txaus siab rau kev txo qhov hnyav ntawm lub tsheb thauj khoom thaum nqa lub nra.
Specifications:
|
Khoom npe |
Tri Axle Sab Phab Ntsa Trailer |
|
Loj |
13000x2550x2700mm (yeem) |
|
Tyre specifications |
12R22.5/11R22.5/13R22.5/11. |
|
Axles |
13T/16T, FUWA/BPW/YAHUA / hom lossis yeem |
|
Kev ncua |
Mechanical suspension (German Type or America Type) lossis Air suspension |
|
Them nyiaj |
60T |
|
Rim |
8.00-20/8.5-20/8.8-20 (Patent ntawm electrophoretic xim) |
|
Nplooj nplooj |
8/8/8, 10/10/10, 12/12/12 daim |
|
King pin |
JOST hom 2.0 lossis 3.5 nti bolts hom lossis Vuam hom |
|
Txhawb ceg |
JOST / FUWA / YAHUA hom lossis Tuam Tshoj hom 28ton (ob nrawm lossis ib qho ceev) |
|
Main Beam |
Qhov siab: 450mm-520mm, sab phaj thickness yog 14mm-25mm, nruab nrab phaj thickness yog 8mm-12mm, down phaj thickness yog 16mm-25mm; Khoom siv yog Q345 manganese steel. |
|
Kev siv |
Rau bulk cargo / thawv thauj khoom |
|
Nres System |
Ob chav yeeb nkab kab cua nres, pem hauv ntej ob qag yog 30 cua chamber, rear qag yog 30/30 cua chamber. |
|
Twist Locks |
Plaub, Yim los yog kaum ob daim (lifting type lossis Twist Screw Type) Xaiv cov xauv rau cov thawv ntim khoom |
|
Hluav taws xob qhov system |
24V, 7 tus pin socket, Ib txheej 7-core standard Cable |
|
Teeb |
Tail teeb nrog tig teeb liab, nres teeb & reflector, sab teeb thiab lwm yam |
|
Tool lub thawv |
1set ib |
|
Spare log tsheb |
2set ib |
|
Xim thiab Logo |
Nyob ntawm tus neeg yuav khoom xav tau. |

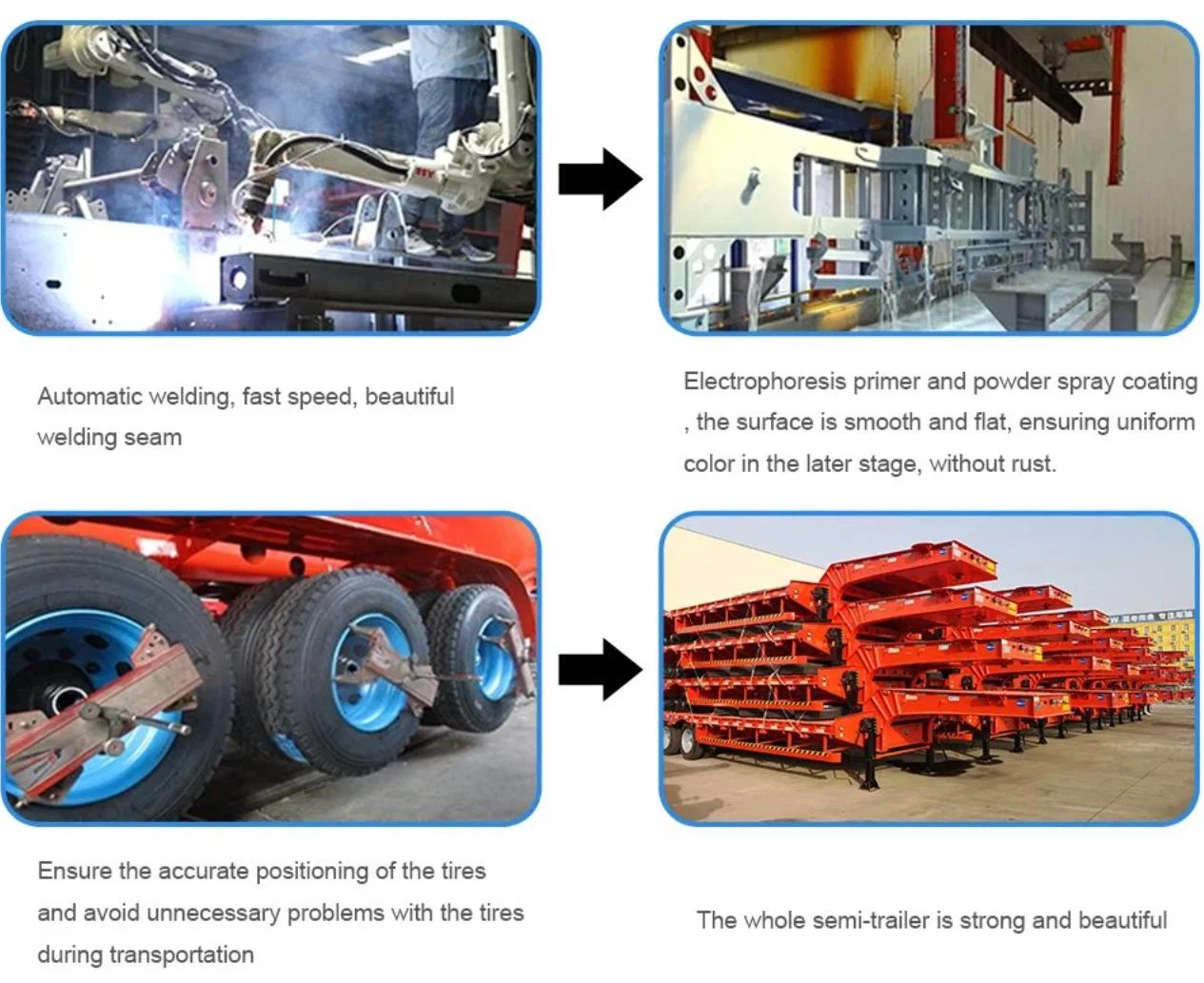

Kev tsim tawm:
Vim li cas thiaj xaiv peb?
1. Muab kev pabcuam sov so thiab tus phooj ywg thiab kev pabcuam tomqab muag.
2. Tau lees paub qhov zoo thiab kev pabcuam zoo tshaj plaws, raws li koj yuav los ntawm cov neeg muag khoom hauv zos.
3. Peb tawm tswv yim lub hom phiaj ntawm kev muab cov neeg siv khoom muaj txiaj ntsig rau cov khoom lag luam thiab cov kev pabcuam muaj txiaj ntsig, yog li ua kom cov neeg siv khoom paub txog lub tuam txhab thiab txhim kho lub tuam txhab muaj koob npe thiab lub koob npe nrov hauv lub siab ntawm cov neeg siv khoom.
4. Customized specifications txais tos.
