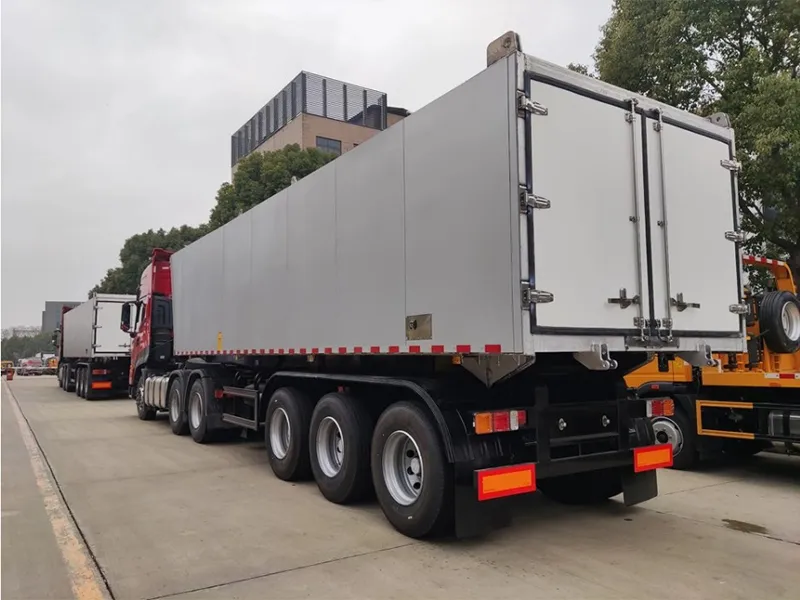

Nqe lus piav qhia:
Feature:
1. Lub zog siab thiab lub teeb yuag: Cov khoom siv aluminium alloy muaj lub zog siab thiab hardness, yog li aluminium alloy dump semi-trailers tuaj yeem nqa tau ntau dua. Nyob rau tib lub sijhawm, qhov tsis tshua muaj ntom ntom nti thiab lub teeb yuag ntawm txhuas alloy ua rau aluminium tag nrho cov shocks muaj qhov hnyav qis dua thiab txo qis roj kev siv roj.
2. Corrosion kuj: Aluminium alloy muaj zoo heev corrosion kuj thiab yuav siv tau nyob rau hauv hnyav sab nraum zoov ib puag ncig yam tsis muaj kev xeb thiab corrosion, yog li ncua nws cov kev pab cuam lub neej.
3. Kev ruaj ntseg zoo: Los ntawm kev tsim tsim thiab kev ua tiav, aluminium alloy dump semi-trailers tuaj yeem tswj kev ruaj ntseg zoo thaum tsav tsheb ceev thiab ntse tig. Nyob rau tib lub sijhawm, nws cov qauv chassis muaj zog thiab ruaj khov, thiab nws siv cov txheej txheem ncua kev kawm ntawv thiab kev sib tsoo kom ua tau zoo dua kev nyab xeeb ntawm kev tsav tsheb.
Specification:
|
Qhov Loj (L * W * H) |
10500 * 2650 * 3700 (mm) (Customized Size los yog Tsim raws li cov neeg siv khoom xav tau) |
|
Thickness |
Sab phab ntsa: 8 hli; pem hauv ntej: 10 mm |
|
Thauj khoom (Kg) |
40000 rau 100000 |
|
Ntim (CBM) |
20-50 CBM |
|
Hydraulic system |
HYVA Brand |
|
Kingpin |
JOST 3.5 "/ 2.5" bolt-hauv hom |
|
tsaws iav |
JOST 19" |
|
Log tsheb |
11R22.5 /12R22.5/11.00R20/12.00R20 |
|
Qag |
FUWA/BPW/ZY los yog lwm yam Hom |
|
Kev ncua |
Heavy duty mechanical suspension nrog springs / Air suspension / Bogie suspension |
|
Nres system |
Dual kab nrog WABCO hom Re-6 thaum muaj xwm ceev relay valve, T30/30 cua chamber, 45L cua tso tsheb hlau luam |
|
Hluav taws xob qhov system |
Ib chav tsev ntawm 24V 7-pin ISO standard socket; nrog nres lub teeb, tig lub teeb, rov qab lub teeb, sab teeb, reflector, pos huab teeb; ib txheej ntawm 6-pin standard cable |
Kev tsim cov ntsiab lus:
Factory Saib:
Peb qhov kev pabcuam:
1. Kev pab cuam muag khoom ua ntej
Cov kev pabcuam kws tshaj lij pab txhawb tus nqi, cov kev pabcuam ntxaws txav cov neeg siv khoom, thiab txuas ntxiv tsim tus nqi rau cov neeg siv khoom.
1) Muab cov kev daws teeb meem semi-trailer raws li cov neeg siv khoom xav tau.
2) Cov neeg siv khoom-centric thiab ua siab ncaj rau txhua tus neeg siv khoom.
3) Muab tus nqi zoo tshaj rau koj.
4) Tsim ib pab pawg tswj xyuas nruj kom paub tseeb tias qhov zoo.
5) Muaj pab pawg muag khoom zoo tshaj plaws uas tuaj yeem muab cov kev pabcuam zoo tom qab.
2. Kev pab cuam tom qab muag
1) Muab cov kev pabcuam saib xyuas thiab txo cov neeg siv khoom txhawj xeeb.
2) Lub sijhawm lav yog ib xyoos.
3) Cov khoom lag luam lav lub neej tso cai rau cov neeg siv khoom siv nrog kev thaj yeeb nyab xeeb thiab kev thaj yeeb nyab xeeb.
FAQ:
Packing & Shipping:
