Nqe lus piav qhia:

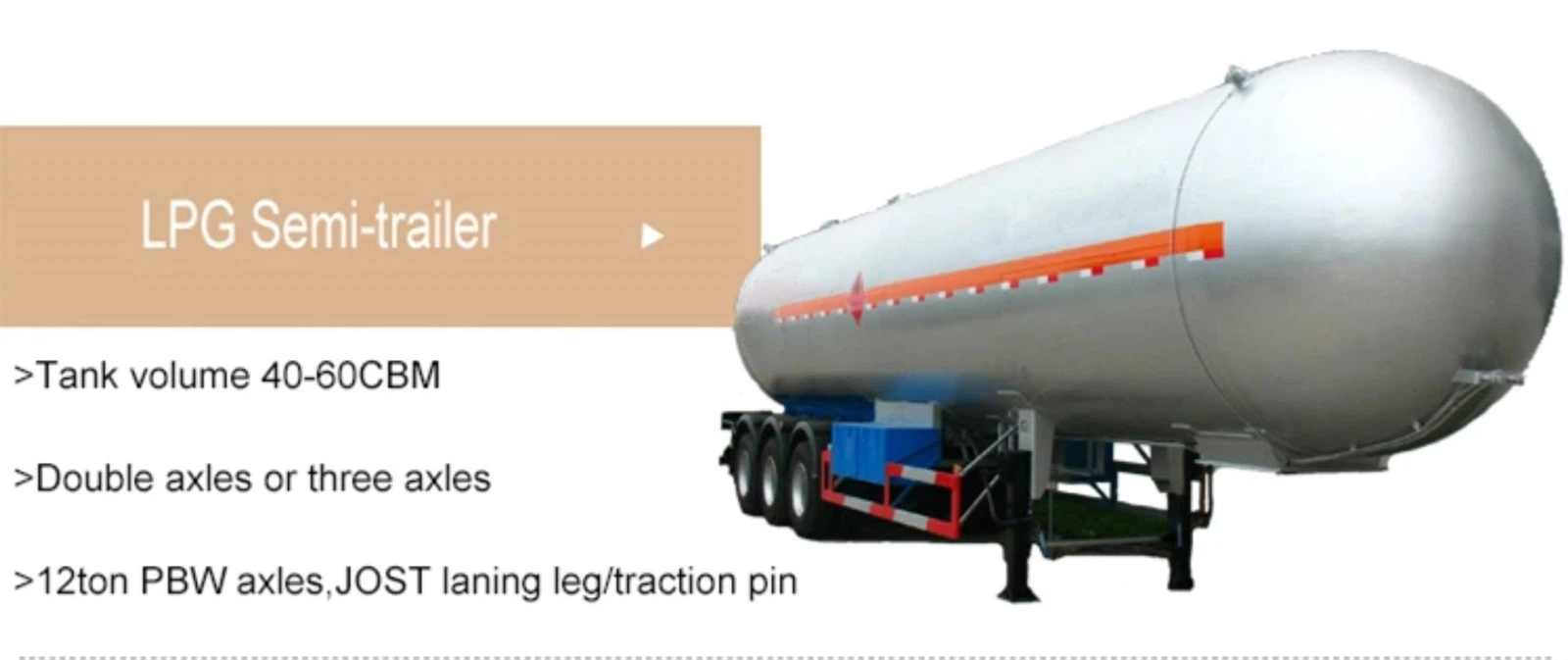

LPG Semi trailer tuaj yeem muab faib ua: propane thauj semi-trailers, propylene thauj semi-trailers, dimethyl ether thauj semi-trailers, kua ammonia thauj semi-trailers, methylamine thauj semi-trailers, acetaldehyde thauj semi-trailers, thiab lwm yam.
Liquefied gas tsheb thauj mus los semi-trailers tuaj yeem tsim thiab hloov kho raws li cov neeg siv khoom xav tau. Lawv haum rau cov kua ammonia, kua sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, cyclohexane, thiab lwm yam.
Feature:
1. Lub tank yuav tsis xau, tawg lossis tawg thaum thauj mus rau hauv qhov kev tsim siab, thiab muaj kev sib khi zoo thiab muaj zog txaus.
2. Thaum tsim lub zog ntawm lub tank, peb lub tuam txhab tsim cov kws tshaj lij tau txiav txim siab qhov sib npaug ntawm lub siab uas tsim los ntawm qhov nqus vapor siab ntawm qhov nruab nrab hauv lub tank, lub siab zoo li qub ntawm cov kua kem, thiab lub zog inertia ntawm cov kua. Nyob rau tib lub sijhawm, lub tank tau calibrated rau sab nraud siab los tiv thaiv nws los ntawm kev puas tsuaj thaum lub sij hawm dynamic txheej txheem.
Specification:
|
3 Axles LPG Tank Semitrailer |
|||
|
Loj loj |
|||
|
1 |
Dimensions (l * w * h) |
13000 * 2500 * 4000 hli |
|
|
2 |
Kwv yees Tare Nyhav |
15 000 KG |
|
|
3 |
Them nyiaj |
25 000 KG |
|
|
4 |
Qhov hnyav tag nrho |
40000 KG |
|
|
5 |
Siv tau ntim |
55 CBM |
|
|
Tanker lub cev |
|||
|
1 |
Cov khoom |
LPG, Butane, Propane |
|
|
2 |
Cov khoom ua kua dej |
nplaim taws |
|
|
4 |
Tsim kub |
rau 50 degree |
|
|
5 |
Tsim siab |
1.61MPa |
|
|
6 |
Kev tiv thaiv corrosion |
2 hli |
|
|
7 |
Khoom siv |
Tanker lub cev: Q345R, 13mm |
|
|
Xaus phaj: Q345R, HHA2472x8 (6.5) mm |
|||
|
Main Beam: AG 700 8mm. |
|||
|
8 |
Chav tsev |
Ib |
|
|
9 |
Manhole |
1 tx450. |
|
|
10 |
Cov duab |
Cylindrical; Ellipse taub hau |
|
|
Kev kuaj pom |
|||
|
1 |
Kev kho cua sov |
Kev kho cua sov tag nrho hauv qhov cub, 600 degree txog 640 degree |
|
|
2 |
Kev kuaj pom tsis haum |
100% Flaw detection |
|
|
3 |
Kuaj siab |
1.61MPa |
|
|
4 |
Hydraulic xeem |
2.1 MPa siab |
|
|
5 |
Magnaflux |
Lub hom phiaj ntawm qhov chaw vuam qhov tsis pom kev tsis tuaj yeem npog |
|
|
Khiav System |
|||
|
1 |
Axles |
3 * FUWA Hom 13 Tuj widen 16Ton brakes |
|
|
2 |
Kev kaw lus kaw lus |
6 * nplooj caij nplooj ntoos hlav ncua 13 * 90 * 10 |
|
|
3 |
Lub log rim |
12 sets of 9.0*22.5 |
|
|
4 |
Lub log |
12 teev ntawm 12R22.5 |
|
|
5 |
Kingpin |
1 * 2.5 "JOST ntsia liaj qhov rooj, nyob rau hauv lub phaj, fabricated |
|
|
6 |
tsaws ob txhais ceg |
1 * SAF HOLLAND hom 25T ib qho kev sib txuas, ob zaug ceev |
|
|
7 |
Cua tank |
2x50L |
|
|
Nruab nrab Tswj System |
|||
|
1 |
Emergency Cut-off Valves |
4 * Gas theem QGJ43F-25-8 |
Gas theem DN25, |
|
kua theem QGJ43F-25-7 |
Ua kua theem DN50 |
||
|
2 |
Pob Valve |
4* Gas theem Q41F-25P-9B |
Gas theem DN25, |
|
kua theem Q41F-25P-8B |
Ua kua theem DN50 |
||
|
3 |
Kev ua haujlwm hom |
Neeg kho tshuab |
Rub cov keyboards |
|
4 |
Kua ntsuas |
ZGM-25-2D (50-2460mm) |
|
|
5 |
Siab qhia cov ntsuas kub |
2* WTQ-280 -50-80ºC |
qib 1.5 |
|
6 |
Oressure gage |
2* YTN-100T 0-4MPa |
qib 1.6 |
|
7 |
Kev nyab xeeb Valve |
1 * A412F -25-22 DN100 |
1.72MPa |
|
8 |
ABS |
1 |
|
|
9 |
Relay valve |
1 |
|
|
Electronical System |
|||
|
1 |
7-Pin Socket |
1 * A412F -25-22 DN100 |
|
|
2 |
LED Teeb |
1set ib |
|
|
3 |
Kab |
1set ib |
|
|
Khoom siv |
|||
|
1 |
2 * Cov cuab yeej me me |
||
|
2 |
Lub log tsheb * 1set |
||
|
3 |
2 * Hluav taws tua hluav taws * 8kg nrog lub thawv liab |
||
|
4 |
2 * Txee |
||
|
5 |
2 * Hlau fender |
||
|
6 |
1 * Spare log tsheb cranking bar |
||
|
7 |
2 * tsaws iav cranking bar |
||
|
8 |
Ncej tes tsho taub hau |
||
|
9 |
1 * C zoo Static conductive siv |
||
|
10 |
Ua tiav Impeller blasting |
||
