Nqe lus piav qhia:
Thawv semi trailer feem ntau pom nyob rau hauv cov chaw nres nkoj terminals. Lawv thauj cov thawv uas tuaj yeem thauj khoom thiab tshem tawm tag nrho. Raws li cov tsos ntawm semi-trailers, lawv muaj peev xwm muab faib ua 3 subcategories, uas yog.
(1) Ncaj beam semi-trailer: Raws li lub npe qhia, txoj kab ntev ntawm hom semi-trailer txuas ncaj qha los ntawm lub nraub qaum mus rau pem hauv ntej ntawm lub tsheb, thiab qhov hnyav ntawm lub semi-trailer yog kis ncaj nraim rau tag nrho. ncej.
(2) Loj gooseneck semi-trailer: Cov duab zoo ib yam li gooseneck. Raws li pom nyob rau hauv daim duab, lub hauv ntej kawg yog siab tshaj lub rear kawg. Qhov siab sib txawv feem ntau yog li 30 centimeters, thiab qhov siab dua tsis tuaj yeem nqa qhov hnyav ntawm semi-trailer.
(3) Me me gooseneck semi-trailer: Kuj tseem muaj qhov zoo ib yam li gooseneck, tab sis qhov siab sib txawv feem ntau yog li 10 centimeters. Qhov txawv ntawm qhov loj gooseneck yog qhov siab dua ntawm qhov me me gooseneck tuaj yeem nqa ib feem ntawm qhov hnyav ntawm semi-trailer.
Nta:
- Tshwj xeeb thauj trailer rau thauj cov thawv.
- Qhov luaj li cas ntawm lub thawv trailer chaw thau khoom yog txiav txim siab raws li qhov loj ntawm lub thawv, thiab cov khoom siv ntswj ntswj rau kev kho lub thawv yog muab rau ntawm txoj haujlwm sib txuas rau plaub lub kaum sab xis hauv qab ntawm lub thawv.
- Feem ntau siv semi-hanging, full-hanging thiab ob-hanging yog siv, nrog semi-hanging yog hom tshaj plaws.
Specifications:
|
Main beam |
Heavy luag hauj lwm thiab ntxiv durability tsim kuv beam; Kev xaiv rau siab tensile steel Q345B, welded los ntawm cov txheej txheem tsis siv neeg Submerged-Arc. |
|
Ncej Beam |
Sab saum toj Flange 14mm, dav 140mm; Nruab nrab Flange 8mm; Hauv qab Flange 16mm, dav 140mm, lub ntsiab nqaj qhov siab 500mm |
|
Qag |
2 qag, 16Ton Fuwa / BPW / YUEK hom 16ton nres nres |
|
tsaws iav |
28T lifting muaj peev xwm nrog ob ceev |
|
King Pin |
JOST 2.00 los yog 3.5 nti bolt-hauv huab tais tus pin |
|
Kev ncua |
Mechanical/Bogie/Air Suspension |
|
Nplooj Caij nplooj ntoos hlav |
90mm (W) * 13mm (T) * 13 Txheej |
|
Pneumatic Braking System |
Dual kab pneumatic nres system, T30 cua chamber, 40L cua tso tsheb hlau luam, WABCO Emergency relay valve |
|
Rim |
9. 0-20*12 pcs |
|
Lub log |
12R22.5 * 12 pcs |
|
Khoom siv |
Ib tug standard toolbox |
|
Spare log tsheb |
Ib |
|
Hluav taws xob qhov system |
24 volt hluav taws xob system.7 pin hluav taws xob txuas. Chaw nres tsheb, thim rov qab, tus lej phaj thiab qhov taw qhia teeb. rear teeb ua raws li European qauv, rear pem hauv ntej thiab sab reflectors |
|
Kev pleev xim |
Ua kom tiav Chassis xuab zeb blasting los ntxuav xeb, 1 lub tsho tiv no ntawm anticorrosive prime, 2 lub tsho tiv no ntawm cov xim kawg |

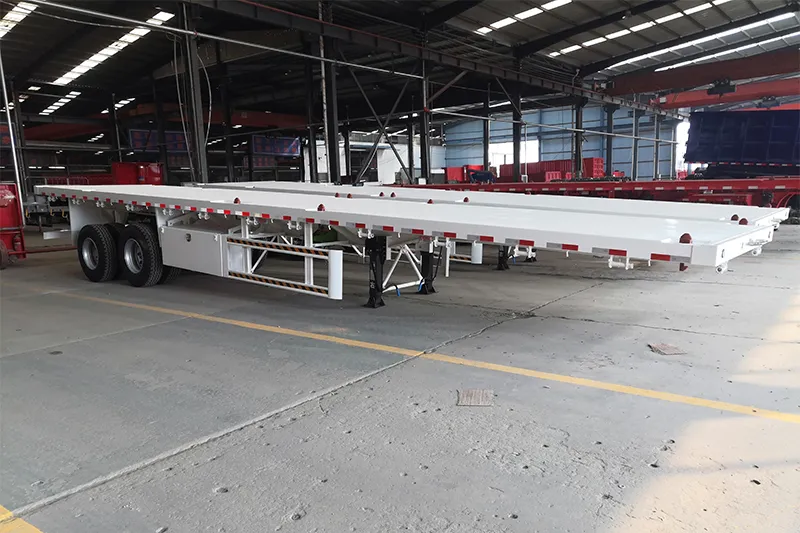

Product details:
Hoobkas saib:
Peb qhov kev pabcuam:
1. Cov lus teb ceev ceev:Peb paub zoo txog tus nqi ntawm peb cov neeg siv khoom lub sijhawm, yog li peb yuav teb sai sai tom qab tau txais lawv cov kev xav tau. Txawm hais tias nws yog kev sib tham hauv xov tooj lossis kev sib txuas lus hauv online, peb tuaj yeem lav muab cov neeg siv khoom txaus siab teb sai li sai tau.
2. Cov kev pabcuam customized:Peb nkag siab tias txhua tus neeg siv khoom xav tau tshwj xeeb, yog li peb yuav muab cov kev pabcuam customized raws li cov neeg siv khoom tshwj xeeb. Qhov no tsis yog tsuas yog ua tau zoo raws li cov neeg siv khoom xav tau, tab sis kuj tseem txhim kho kev pabcuam thiab ua haujlwm tau zoo.
3. Kev taug qab tag nrho:Thaum lub sijhawm ua haujlwm, peb yuav taug qab cov kev pabcuam kev ua haujlwm thoob plaws hauv cov txheej txheem kom ntseeg tau tias txhua qhov txuas tuaj yeem ua tiav raws li txoj kev npaj. Nyob rau tib lub sijhawm, peb tseem yuav sib txuas lus nrog cov neeg siv khoom tsis tu ncua kom nkag siab txog cov txiaj ntsig kev pabcuam kom peb tuaj yeem kho peb cov tswv yim kev pabcuam raws sijhawm.
FAQ:
Packing & Shipping:
Cim npe nrov: Tuam Tshoj 2 axles thawv flatbed semi trailer, Tuam Tshoj 2 axles thawv flatbed semi trailer manufacturers, lwm tus neeg
