Nqe lus piav qhia:

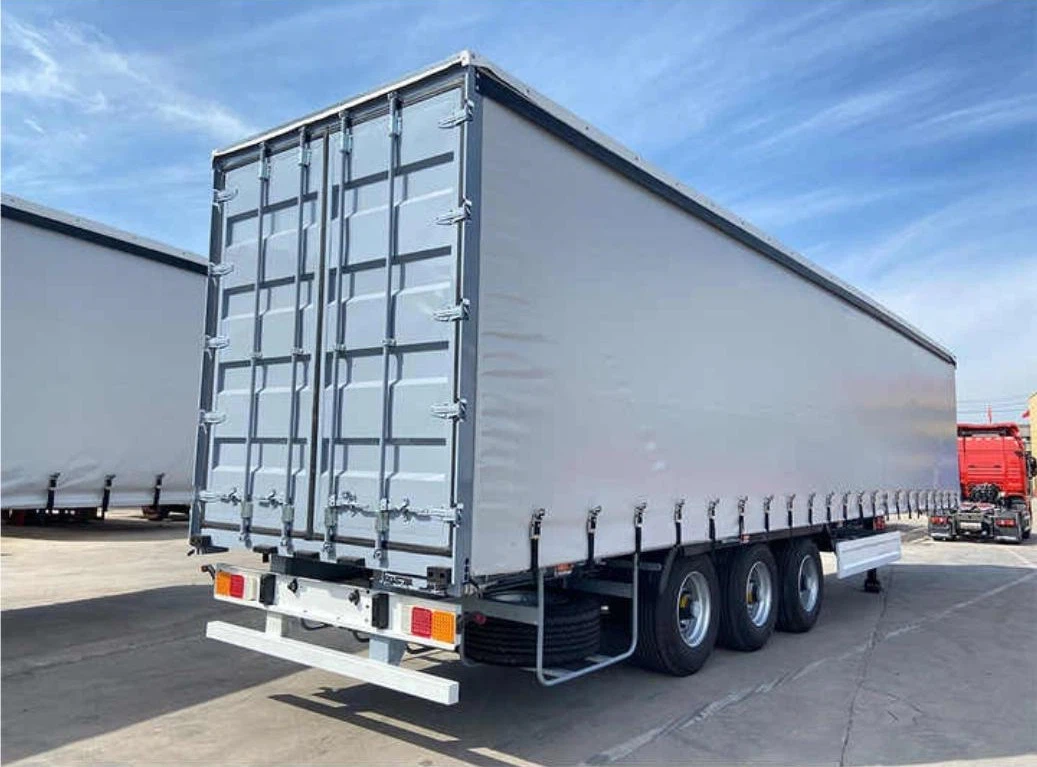

Lub tsheb lub cev yog ua los ntawm lub zog muaj zog txias-kuav los tiag corrugated steel daim hlau, tsis muaj lub cev pob txha, nrog cov chaw thoob plaws, ntau yam kev xaiv, qhov chaw thauj khoom loj, tsim nyog faib rau hauv lub tsheb lub cev, thiab X-shaped bracing, uas muaj cov yam ntxwv. ntawm ntau rub, hnyav load, thiab lub teeb yuag. Muaj hom kaw, thawb-rub hom qhib, qhib hom, qhib hom nrog tarpaulin pas nrig hom, thiab lwm yam, uas yooj yim rau kev khiav lag luam thiab ua tau raws li ntau haiv neeg thiab cov kev cai ntawm cov neeg siv.
Nta:
- Kev siv cov thev naus laus zis thoob ntiaj teb thiab cov txheej txheem zoo ua kom cov khoom lag luam zoo, tag nrho kev ntseeg tau thiab kev tsim nyog.
- Lub ntsiab steel qauv siv high-strength steel qauv, thiab lub ntsiab beams muaj qhov zoo tshaj plaws load-bearing nyhuv.
- Cov khoom muaj kev tsim qauv, tsim nyog qauv, lub teeb yuag, ntim loj thiab muaj zog load-bearing muaj peev xwm. Nws muaj cov dej tsis zoo thiab tiv thaiv tub sab nyiag, thiab muaj qhov yooj yim thiab zoo nkauj tsos.
- Siv cov xim zoo nkauj hauv tsev, cov txheej txheem kho saum npoo yog exquisite.
Specifications:
|
Loj |
14000 * 2550 * 4000 hli |
|
Thauj khoom |
92 CWB |
|
Siv qhov loj me |
13850 * 2470 * 2700 hli |
|
Stringer qhov siab |
400MM Tsawg kub resistant 700K2 phaj |
|
Upper tis vaj huam sib luag |
8MM ua |
|
Sab laug vaj huam sib luag |
10MM |
|
Nruab nrab phaj |
60# |
|
Traction pin |
2 inches JOST |
|
Txhawb ceg |
28T sab nraud ceg FUWA |
|
Synchronized valve |
WABCO |
|
Airbag |
6 airbags, tsheb nqa, pem hauv ntej qag nqa (WABCO) |
|
Qag |
13t qag 3 |
|
Lub log |
7 * daim duab peb sab hom 385 / 65R22.5 log tsheb |
|
Hlau nplhaib |
11.75 * 7.00 Nws |
|
Kev ncua |
cua ncua |
|
Braking System |
T30/30 ob chav cua chamber 6 daim |
|
Fais fab mov |
39 m2 |
|
Sab beam |
G-zoo li tus 3 |
|
Common beam |
Pem hauv ntej thiab nram qab khoov qhov chaw |
|
Ob txheej txheej |
khoov qhov chaw |
|
Pem hauv ntej fender |
Pem hauv ntej baffle thiab rear baffle yog tshem tau, thiab pem hauv ntej baffle yog ua los ntawm composite board khoom |
|
Base phaj |
Xyoob plywood - 28# tuab, siv cov nplaum nplaum tom qab kev teeb tsa |
|
Toolbox |
1 unit 1.5 * 0.6 * 0.5m aluminium alloy qab lub semi trailer |
|
Spare log tsheb |
1 unit |
|
Cua tank |
2 units 50L aluminium |
|
ABS |
WABCO tau teeb tsa lub tswb nrov |
|
Kev tiv thaiv net |
Txhua yam yog daim ntawv tsis muaj kev cuam tshuam, aluminium alloy |
|
Teeb |
Pull-out ceeb toom teeb nyob tom qab |
|
Xim |
kev cai ua |

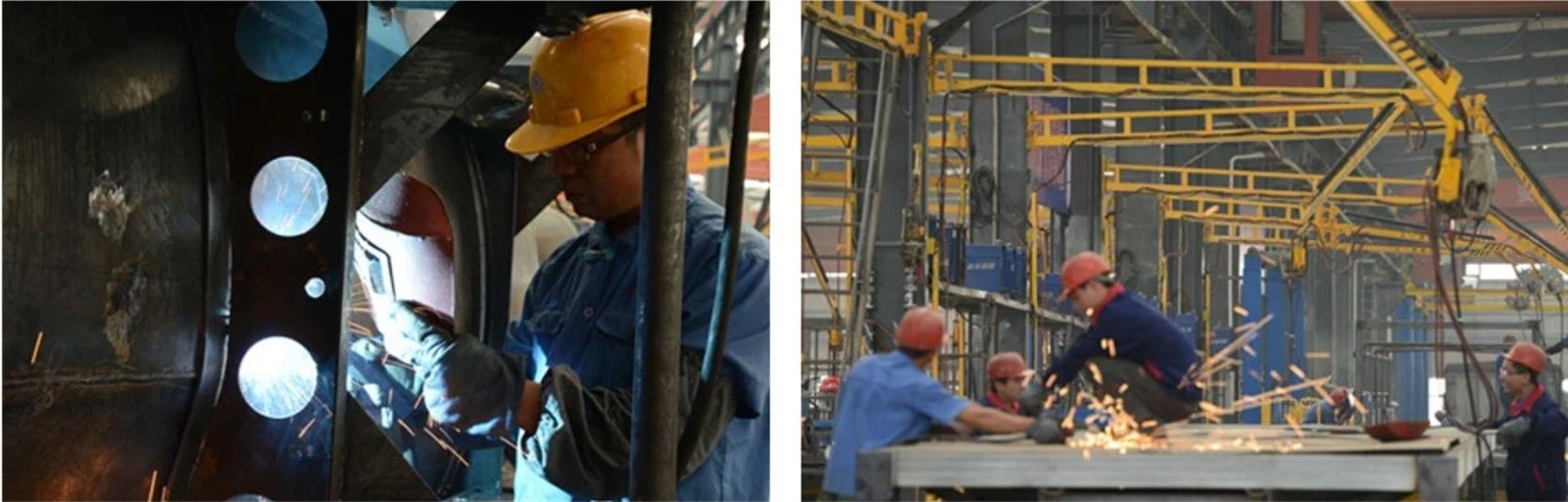

Factory Saib:
Peb qhov kev pabcuam:
Lub sijhawm lav yog ib xyoos.
Sab nraum lub sijhawm lav, peb muab cov kev pabcuam pub dawb rau lub neej. Raws li cov lus nug los ntawm cov neeg siv khoom, peb xaiv txoj kev uas cov neeg siv khoom pom tau yooj yim los muab cov neeg siv khoom nrog kev txhawb nqa sai.
Peb lub tuam txhab lav tias cov khoom muag raws li daim ntawv cog lus yog cov khoom lag luam tshiab, cov qauv tsim thiab cov khoom siv tau zoo, thiab ua raws li cov qauv hauv lub tebchaws thiab kev lag luam. Peb kuj tau lees tias tsis muaj qhov tsis xws luag los ntawm kev tsim, khoom siv lossis kev ua haujlwm zoo raws li daim ntawv cog lus.
Peb lav tias cov khoom yuav raug xa tuaj rau koj thaum ntxov.
Vim li cas thiaj xaiv peb?
1. Tus nqi tshwj xeeb rau cov nyiaj.
2. Rau cov neeg siv khoom cov lus nug tom qab muag, peb yuav teb lawv li ntawm 2 teev thaum lub sijhawm ua haujlwm.
3. Muab kev pabcuam sov so thiab tus phooj ywg thiab kev pabcuam tomqab muag.
4. Tau lees paub qhov zoo thiab kev pabcuam zoo tshaj plaws, raws li koj yuav los ntawm cov neeg muag khoom hauv zos.
5. Peb tawm tswv yim lub hom phiaj ntawm kev muab cov neeg siv khoom muaj txiaj ntsig rau cov khoom lag luam thiab cov kev pabcuam muaj txiaj ntsig, yog li ua kom cov neeg siv khoom paub txog lub tuam txhab thiab txhim kho lub tuam txhab muaj koob npe thiab lub koob npe nrov hauv lub siab ntawm cov neeg siv khoom.
FAQ:
Packing & Shipping:
