Nqe lus piav qhia:

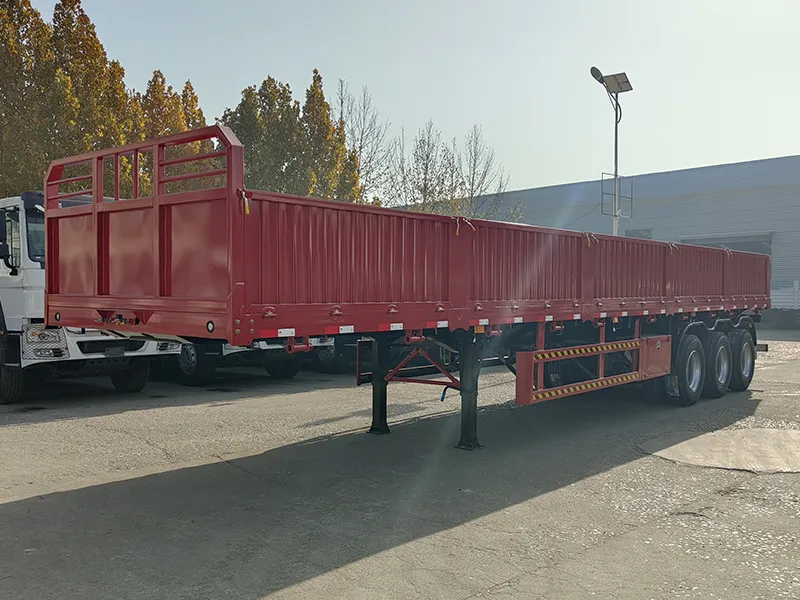

Lub sidewall semi-trailer yog hom semi-trailer tshaj plaws ntawm kev ua lag luam. Nws muaj zog cargo adaptability thiab yog tsim nyog rau nruab nrab thiab ntev kev thauj mus los ntawm nruab nrab, hnyav thiab bulk cargo. Nws tau muab faib ua hom kab ncaj ncaj thiab hom gooseneck. Qhov kom zoo dua ntawm gooseneck hom yog tias nws muaj qhov chaw thauj khoom qis, qhov nruab nrab ntawm lub ntiajteb txawj nqus ntawm lub tsheb, yooj yim dua, thiab zoo dua passability ntawm qhov siab-limited txoj kev.
Nta:
Muaj ntau hom khoom thauj khoom thauj khoom, thiab ntau lub sijhawm ntev, dav dav, thiab qhov siab siab ntxiv tuaj yeem thauj khoom..
Vim hais tias lub compartment qhib, nws yooj yim rau thauj khoom.
Lub thav duab ntawm lub warehouse-hom semi-trailer yog ib tug nqaj-los ntawm cov qauv, thiab cov kab teeb yog ncaj los yog gooseneck.
Lub zog, nruj, toughness, load-bearing muaj peev xwm ntawm tus ncej sib npaug yog muaj zog, thiab tsis muaj deformation mus tas li.
Specifications:
|
Qauv |
TZA 1240CZ |
|
Loj |
12500 * 2500 * 1500 hli |
|
Sab board qhov siab |
1800-2500mm yeem |
|
Them nyiaj |
50000 KG |
|
Main beam |
Heavy duty kuv beam. |
|
Hla beam |
160 hli |
|
Phaj |
check phaj los yog tiaj phaj |
|
Axles |
3 * 13ton peev (Hom yeem) |
|
Kev ncua |
Mechanical suspension (Air suspension yeem) |
|
Nplooj caij nplooj ntoos hlav |
10 pcs |
|
Lub log |
12R22.5 12pcs (Lwm qhov loj tuaj yeem xaiv) |
|
Rim |
9. |
|
Kin pin |
2 '' / 3.5 '' bolts hom |
|
tsaws iav |
28 Tuj ob ceev |
|
Twist xauv |
xaiv tau |
|
Braking system |
Ob chav cua chamber, nres valve, 40L cua tso tsheb hlau luam; ABS yeem |
|
Hluav taws xob |
LED teeb, 7 txoj kev, 24V |
|
Kev pleev xim |
Blasting thiab huv si xeb, 1 lub tsho tiv no ntawm prime painting, 2 lub tsho tiv no ntawm tiav painting |
Kev tsim tawm:
Peb qhov kev pabcuam:
Peb yog cov chaw tsim khoom, uas koom ua ke ntau lawm, kev tshawb fawb thiab kev muag khoom.
Lub sijhawm lav yog ib xyoos.
Sab nraum lub sijhawm lav, peb muab cov kev pabcuam pub dawb rau lub neej. Raws li cov lus nug los ntawm cov neeg siv khoom, peb xaiv txoj kev uas cov neeg siv khoom pom tau yooj yim los muab cov neeg siv khoom nrog kev txhawb nqa sai.
Peb lub tuam txhab lav tias cov khoom muag raws li daim ntawv cog lus yog cov khoom lag luam tshiab, cov qauv tsim thiab cov khoom siv tau zoo, thiab ua raws li cov qauv hauv lub tebchaws thiab kev lag luam. Peb kuj lav tias tsis muaj qhov tsis xws luag los ntawm kev tsim, khoom siv lossis kev ua haujlwm zoo raws li kev cog lus.
Lub hom phiaj ntawm kev pabcuam: txhawj xeeb txog cov neeg siv cov kev xav tau, xav txog cov neeg siv xav li cas, thiab muab cov neeg siv nrog kev txaus siab, kev xav, kev tshaj lij thiab kev pabcuam zoo txij thaum pib mus txog thaum xaus.
Vim li cas thiaj xaiv peb?
1. 20 xyoo kev paub.
2. Customizable neeg saib xyuas kom tau raws li koj xav tau.
3. Cov neeg siv khoom tuaj yeem tau txais kev txhawb nqa 24/7. Yog tias koj ntsib teeb meem khoom txhua lub sijhawm nyob txhua qhov chaw hauv ntiaj teb, koj tuaj yeem tiv tauj peb thiab cov kws tshaj lij yuav daws cov teeb meem rau koj.
4. Tus nqi tshwj xeeb rau cov nyiaj.
5. Rau cov neeg siv khoom 'kev nug tom qab muag, peb yuav teb lawv li ntawm 2 teev thaum lub sijhawm ua haujlwm.
